Different Types of Metal Bending


Introduction

Metal bending, a technique vital to the metalworking industry, transforms flat sheets and metal tubes into specific shapes and forms. The range of applications is vast, from automotive body parts to roofing sheets, metal furniture, and more.

In this article, we delve into the bending process, the types of bendable metals, various metal bending techniques, the associated tools, benefits, and disadvantages, as well as practical tips for forming metal.

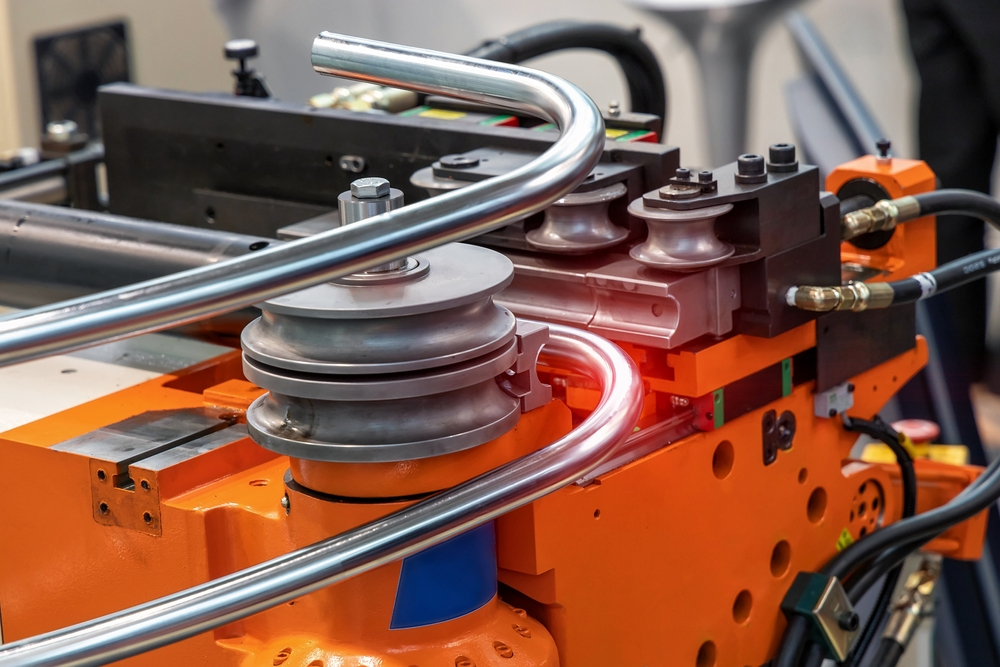

metal-rod-bending-at-manufacturing-line-metal-supermarkets-uk-blog

What is Metal Bending?

Metal bending is a manufacturing process that deforms metal, altering its shape without changing its volume. The bend angle, a critical parameter, is determined by the degree of deformation.

This process demands a deep understanding of the workpiece, its material thickness, and its bend allowance—the extent to which the material can be bent without breaking.

Metal bending is an intricate play of forces applied strategically to reshape the metal while maintaining its integrity. The success of this process hinges on controlling various parameters like the bend angle and the bend allowance, which are both influenced by the material thickness.

Proper understanding and execution of these factors are key to producing a workpiece that meets the desired specifications and standards.

Bendable/Formable Metals

A variety of metals can be shaped through the bending process. Aluminium, being lightweight and highly malleable, is often used in the aerospace and automotive industries.

Stainless steel, known for its corrosion resistance, is commonly used in kitchen appliances and various industrial applications. Copper, with its excellent conductivity, is used in electrical applications.

Each of these metals varies in formability, material thickness, and the inside bend radius that can be achieved. Beyond these, brass, known for its low friction properties, is also used for fittings and tools.

Mild steel, thanks to its excellent formability and strength, is the go-to choice for many construction projects. Each metal comes with its own unique characteristics; hence, the choice of metal often depends on the specific requirements of the project.

Different Types of Metal Bending

The art of metal bending is vast and varied, with several techniques employed based on the specific application.

  • Air Bending: In this technique, the workpiece isn’t forced completely onto the die. It provides flexibility and adaptability in terms of the bend angles produced with the same tool setup.
  • Bottom Bending: Also known as bottoming, this technique creates a bend by pressing the workpiece fully into the die. The final bend angle and radius mirror the tool shape.
  • V-Bending: A variant of air bending, it forms a ‘V’ shape and is popular for its flexibility and minimal tooling requirements.
  • Coining: This is a precision technique where a large amount of force is applied to the workpiece, imprinting the exact angle of the punch and die.
  • Folding: This uses a folding beam to bend the sheet along a straight axis, commonly used in box and pan bending.
  • Rolling: This process uses three symmetrically positioned rolls to shape the metal. It’s commonly used for large-radius bends and cylindrical parts.

Each technique varies in complexity, precision, and tooling requirements, and is selected based on the nature of the workpiece and the application.

Tools for Bending

Various tools play vital roles in metal bending. Each tool offers unique advantages, tailored to the bending technique and metal type in use:

  • Press Brakes: Central to the bending process are press brakes. These machines apply force to a punch that drives the workpiece into a die, creating a bend. Press brakes can be mechanical or hydraulic, with the latter being more common due to their ease of use and ability to apply large amounts of force.
  • Folding Machines: These devices bend metal along a straight axis, perfect for box and pan bending.
  • Bending Dies: These moulds determine the shape of the bend when used with a press brake.
  • Rolling Machines: Equipped with three symmetrically positioned rolls, they are used for large-radius bends.
  • Tube Benders: Specifically designed for tube bending, they come in manual and hydraulic versions.

Benefits of Metal Bending

Sheet metal bending is favored for its cost-effectiveness and versatility. It allows for complex shapes to be formed from a single piece of metal, reducing assembly time and costs. With the right setup, it is also possible to produce a high volume of parts quickly.

Furthermore, metal bending processes often result in minimal waste, thus promoting material efficiency. The capacity to create detailed, custom shapes also makes it a perfect choice for custom fabrication.

High precision and repeatability ensure consistent quality, meeting tight tolerance requirements. Finally, modern bending techniques and tools can efficiently handle a variety of metals, from aluminium and stainless steel to copper, enhancing the technique’s industry applicability.

Disadvantages of Metal Bending

However, like any manufacturing process, metal bending also has its limitations. Extreme bending angles can cause deformation or fracture in certain metals. The success of a bending operation relies heavily on the operator’s knowledge and skill, as incorrect bend lines can lead to wasted material and time.

Additionally, some metal bending techniques demand significant energy usage, impacting the process’s overall environmental footprint. Precise tooling and machines are required, leading to considerable upfront costs.

Another challenge is the potential distortion or warping of the metal, especially with thin sheets or complex shapes. Lastly, certain methods like coining require a high-force application, limiting the thickness of the metal that can be bent.

Tips for Forming Metal

Avoiding common issues in metal bending often involves careful planning and precise execution. Pay close attention to the bend allowance and the inside bend radius. Both factors are dictated by the properties of the metal and the desired bend angle. When working with metals that have a directional grain, bending should be done perpendicular to the grain direction to reduce the risk of cracking.

It’s also crucial to consider the type and thickness of the metal to select the most appropriate bending technique and tooling. Preparing a detailed design blueprint can help prevent costly mistakes.

Ensure regular maintenance of your bending tools to achieve consistent results. Training operators properly is vital to reducing error margins and ensuring the bending process’s safety and effectiveness. Lastly, consider consulting with experts for intricate projects for the best results.

Can Anyone Bend Metal?

While metal bending requires technical knowledge and specific tools, it is a skill that can be learned. Education, training, and hands-on experience in handling various metals, understanding their properties, and operating bending tools are necessary. Additionally, a creative mind and problem-solving approach can greatly enhance one’s proficiency in this versatile field of metalwork.

Metal Bending at Metal Supermarkets

At Metal Supermarkets, we offer a variety of metals suitable for bending. Our experts can guide you through the process, helping you select the right metal for your project and offering tips for successful bending. With our commitment to customer service, we ensure you get the quality metal you need, precisely when you need it.
