Smelting Metal: How It Works


The art of smelting metal has played a vital role in human civilisation, enabling the creation of tools, structures and innovations that have shaped our world. In this article, we’ll look at what smelting is, its process, how it differs from melting, the tools and materials needed and more!

What is smelting?

The process of extracting a metal from its ore is known as smelting. When you hear this, you might imagine removing a bit of metal from a large block of rock, but there’s more to it.

An ore is more than just a combination of rock and metal. Because the metal in an ore is frequently oxidised, a chemical transformation is required to remove the oxygen. As a result, the metal-containing ore must be put into a blast furnace together with fuel and flux (a chemical cleaning agent).

The molten metal will trickle down into a “bloom,” which is a glob of hot metal that is plucked out with tongs when the ore is heated in the furnace. In addition to the desired metal, a by-product is also produced, termed slag. Slag is an impurity extracted from the metal ore itself.

metal-supermarkets-smelting-metal

A brief history

Smelting has been used to make key tools and weapons as far back as ancient history. The technique dates back to 5000 BCE, when the first metal, copper, was smelted in the Middle East. Metal discoveries such as copper and bronze had a tremendous influence on human history.

These metals were tough enough to make combat axes, spears, and arrow tips, as well as helmets, shields, greaves, and other body armour. Bronze gradually replaced naturally occurring organic materials such as stone and wood in tools and household utensils such as knives, chisels, jugs, cooking pots and saws.

The difference between melting and smelting

It’s easy to confuse the phrases melting and smelting, but these two processes, however, are not the same.

During the melting process, the substance transitions from its solid to liquid state, whereas smelting is the process of extracting metal from ore by heating it over its melting point.

Tools and materials needed for smelting

A variety of tools, materials, and equipment are required to carry out the smelting process. Below is a list of some necessary components:

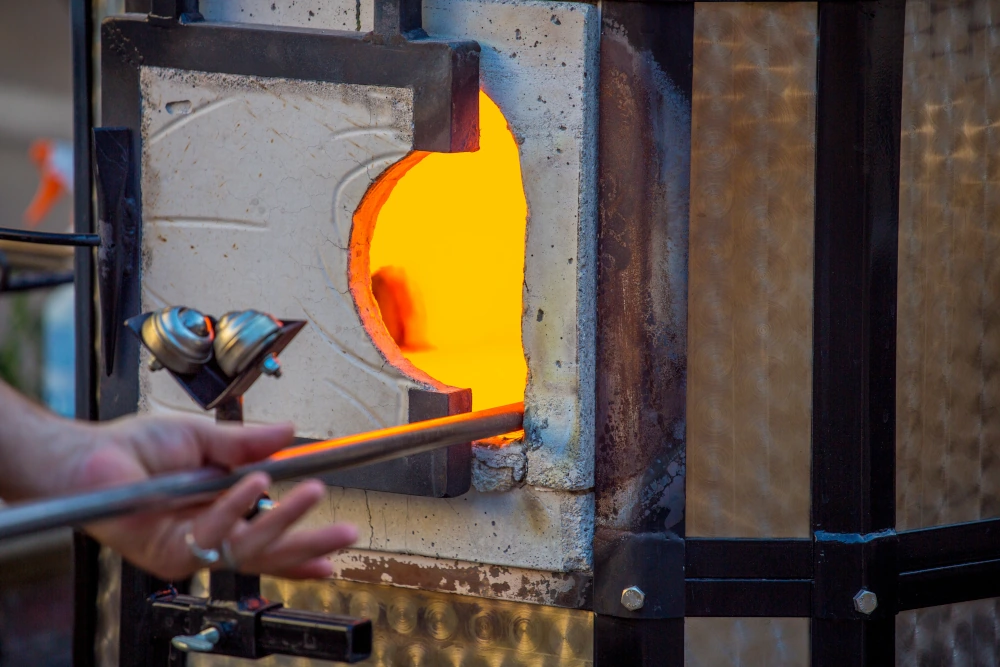

Smelting furnace

Depending on the metal being extracted and the process requirements, a smelting furnace, such as a blast furnace, electric arc furnace or reverberatory furnace is required.

smelting-furnace-metal-supermarkets

Fuel source

To create the necessary temperatures required for smelting, a fuel source such as coal, coke, natural gas or electricity is required.

Reducing agent

To assist reducing metal oxides (i.e. iron oxide) into their elemental form, a reducing agent such as charcoal or coke is often utilised.

Flux

In order to remove the impurities from the metal, a flux substance, such as limestone, silica, or borax, is introduced to the furnace. Flux also contributes to the formation of liquid slag, which may be readily removed from the furnace.

Ore

The fundamental raw material for smelting is metal-bearing ore that has been crushed, processed, and occasionally concentrated.

Protective gear

Personal protective equipment (PPE) such as heat-resistant gloves, face shields, safety glasses, ear protection, and respirators are required for operators working in smelting plants to guard against extreme temperatures, toxic metals, flying debris, and exposure to hazardous compounds.

Temperature control and monitoring

To maintain ideal smelting conditions, tools and equipment such as thermocouples, infrared thermometers or pyrometers are required to measure and manage the temperature within the furnace.

Tapping tools

To tap the molten metal and slag from the furnace, ladles, spoons or other tools are required.

Casting equipment

To shape the pure metal as it cools and hardens, moulds or castings, as well as tongs or other handling equipment are required.

Ventilation and air filtration

Appropriate ventilation and air filtering equipment, like scrubbers or electrostatic precipitators, aid in the reduction of air pollution by catching particulate matter and gaseous pollutants before they are discharged into the environment.

Waste management

To reduce the environmental effect of smelting operations, equipment and infrastructure for the correct disposal, storage or recycling of waste products like slag, dust, wastewater and other components are critical.

The smelting process

Smelting is a pyrometallurgical process that extracts metals from ores by heating them to high temperatures under the influence of a reducing agent, such as carbon or coke. Smelting’s primary purpose is to remove the metal content from contaminants in the ore, such as oxides and silicates.

  1. Preparation

Before smelting iron, the ore is frequently crushed and grounded to increase its surface area, improving the chemical interaction between the iron ore and the reducing agent. In certain situations, the iron ore is concentrated using procedures like flotation or magnetic separation to eliminate impurities and enhance metal content.

  1. Roasting

A primary process known as roasting may be necessary for sulfide ores. It requires heating iron ore in the presence of oxygen to convert metal sulfides into metal oxides and releasing sulphur dioxide gas. This improves the overall smelting efficiency.

  1. Smelting furnace

Depending on the kind of metal being extracted and the specific heat needs of the process, the prepared iron ore is fed into a furnace; this can be a blast furnace, electric arc furnace or reverberatory furnace. Depending on the melting point of the metal, the furnace is then heated to temperatures ranging from 1,200 to 1,600°C (2,192 to 2,912°F).

  1. Reduction

The high temperature in the furnace allows the metal oxides to react with the reducing agent (usually charcoal or coke), resulting in the formation of metallic elements (i.e. metallic iron) as well as carbon dioxide or carbon monoxide. Because of its increased density, molten metal falls to the bottom of the furnace, while lighter impurities, slag, float on top.

  1. Separation

The molten metal and slag are extracted separately from the furnace. To eliminate any residual impurities and materials, the metal might be refined further using methods such as electrolysis or chemical leaching.

  1. Casting

After that, the purified metal is placed into moulds or castings to cool and harden. The resultant ingots, billets, or slabs are utilised as raw materials in the production of a variety of metal goods.

To guarantee efficient and successful extraction of the required metal, it is critical to monitor and manage parameters such as temperature, pressure and reactant composition during smelting.

Which metal is used in smelting?

Iron is one of the most normally employed metals in smelting. Steel is produced from iron ore requiring an iron-carbon combination. Pig iron smelting was formed when the resultant iron smelting included more carbon than was required for steel production. Some typical base metals used in smelting include aluminium, bronze, silver and copper.

The challenges of smelting

Smelting can be a very challenging procedure. To begin with, there is no guarantee that you will obtain the desired metal while smelting as prospecting ore is difficult. You may go through the entire iron ore collection and smelting procedure only to produce impurities and slag.

Secondly, forging your newly extracted metal into any shape is very labour intensive. To get a piece of metal into a usable form, you may have to hammer it for hours, reheat it and then hammer it some more.

Applications of smelting

Metal smelting is not just confined to blacksmithing. Several industries use metal smelting in their day-to-day operations and manufacturing. Smelting is largely utilised in the production of steel, a critical manufacturing material for a wide range of industries.

Steel is a material most often used in the construction industry but can also be found in many of the devices and gadgets we use on a daily basis such as scissors.

How does smelting affect the environment?

Smelting may have a significant impact on the environment due to the discharge of pollutants, resource consumption and waste creation. The following are some of the major environmental hazards linked with smelting:

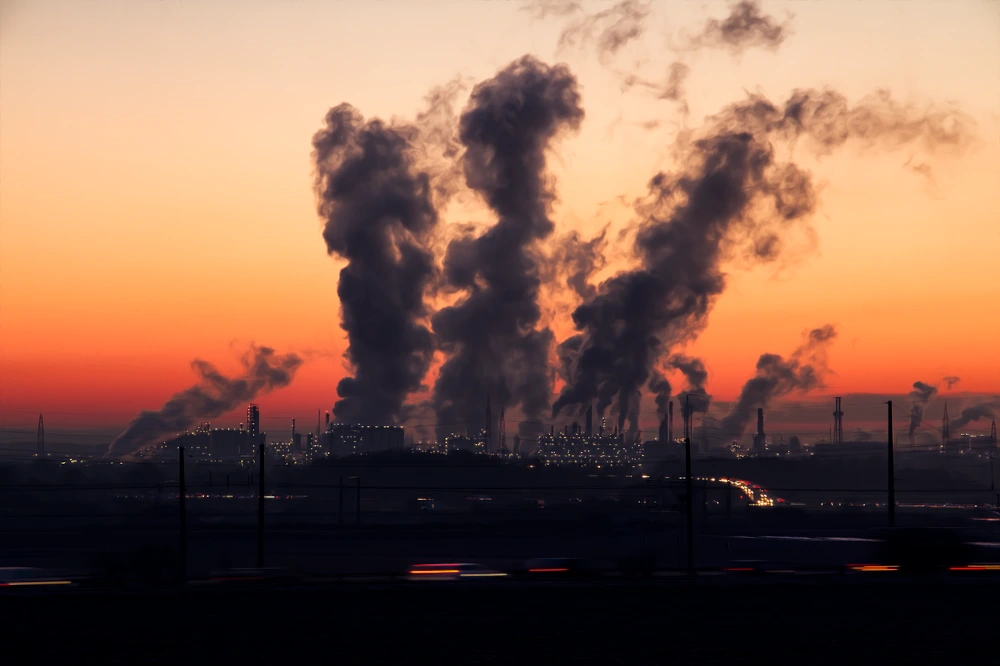

Air pollution

Several gasses and particulate matter are emitted into the environment during smelting, including sulphur dioxide (SO2), nitrogen oxides (NOx), carbon monoxide (CO), carbon dioxide (CO2) and metal dust. Acid rain, for instance, can be caused by sulphur dioxide, which harms ecosystems, soil and water bodies. Nitrogen oxides contribute to smog and are harmful to human respiratory systems.

air-pollution-smelting

Greenhouse gas emissions

Smelting’s high energy requirements, particularly when using fossil fuels, produce large greenhouse gas emissions, principally carbon dioxide.

Waste generation

Smelting generates a lot of debris, such as slag, which can include heavy metals and other harmful substances. Poor slag disposal or containment can cause soil and water pollution, endangering both ecosystems and human health.

Water pollution

Water is frequently used in smelting operations for cooling, cleaning and other functions. As a result, polluted wastewater including metals, acids, and other materials may be discharged, endangering aquatic life and posing threats to human health if not properly cleaned.

Resource depletion

Smelting metals from ores leads to the depletion of non-renewable resources such as metal ores and fossil fuels, which can have long-term environmental effects.

Modern smelting operations use numerous technologies and methods to mitigate environmental consequences, such as gas cleaning systems to reduce air emissions, wastewater treatment to prevent water pollution as well as effective waste management strategies to handle slag and other by-products.

Legislative frameworks and industry standards have also been devised to guarantee that smelting processes follow environmental protection requirements and limit their environmental effect.

Conclusion

Smelting is a critical step in the extraction and manufacture of metals from iron ores. With technological advancements and more effective techniques, this age-old process of iron making has evolved over the years.
