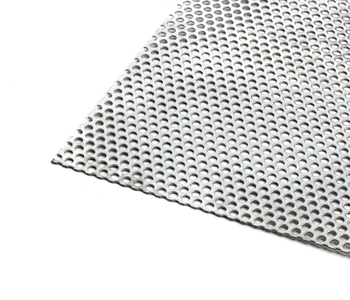

Stainless Steel Perforated Sheet 304/304L

Stainless Steel Perforated Sheet 304/304L is a sheet of 304/304L Stainless Steel Alloy that has been punched with a pattern. 304/304L Stainless Steel Alloy has excellent mechanical properties and is resistant to many corrosive agents.

Specifications
Characteristics
- Cold Working: Good
- Corrosion Resistance: Excellent
- Heat Resistance: Good
- Heat Treatment: Poor
- Hot Working: Fair
- Machinability: Good
- Weldability: Very Good
Uses
Common uses of Stainless Steel Perforated Sheet 304/304L include:
- Architectural Paneling
- Bolts
- Cutlery & Flatware
- Food & Pharmaceutical Production Equipment
- Nuts
- Sanitary Ware & Troughs
- Saucepans
- Screws
- Sinks & Splash Backs
- Springs
It is useful where sanitation and cleanliness are important. Non-magnetic in the annealed condition. Hardness and tensile strength can be increased by cold working, but modified by lowered carbon content, providing good resistance to corrosion in welded construction where subsequent heat treatment is not practical.
More Info
- Density: 8.00 g/cm³
- Electrical Resistivity: 0.72 x10^-6 Ω .m
- Elongation A50 mm: 45 Min %
- Melting Point: 1450 °C
- Modulus of Elasticity: 193 GPa
- Proof Stress: 230 - 210 Min MPa
- Tensile Strength: 520 - 750 MPa
- Thermal Conductivity: 16.2 W/m.K
- Thermal Expansion: 17.2 x10^-6 /K
Grade 304L (L= low carbon) is the same as the 304 except it has an extra-low-carbon analysis, the advantage of which is that it precludes any harmful precipitation in the 800º F to 1500º F range, such as might otherwise occur in welding heavier sections.

	Size & Description ( a x b x c )	Price
	Staggered Pitch 1MM (H) X 2MM (S) X 0.8MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 1MM (H) X 2MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 1MM (H) X 2MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 1.5MM (H) X 2.75MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 2MM (H) X 3MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 2MM (H) X 3.5MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 2MM (H) X 3.5MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 4.5MM (S) X 2MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 5MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 5MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 5MM (S) X 2MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 5MM (S) X 3MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 3MM (H) X 6MM (S) X 3MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 4MM (H) X 6MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 4MM (H) X 7MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 7MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 7MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 8MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 8MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 8MM (S) X 2MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 5MM (H) X 8MM (S) X 3MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 6MM (H) X 8.5MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 6MM (H) X 8.5MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 6MM (H) X 9MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 6MM (H) X 9MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 6MM (H) X 9MM (S) X 2MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	6MM X 10MM X 1.5MM STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 8MM (H) X 11MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 8MM (H) X 12MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 8MM (H) X 12MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 12MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Square Hole 10MM (H) X 12MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Square Hole 10MM (H) X 12MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 13MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 15MM (S) X 1MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 15MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 15MM (S) X 2MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	select size and quantity
Please enter your dimensions and quantity
	Staggered Pitch 10MM (H) X 15MM (S) X 3MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
	Staggered Pitch 15MM (H) X 21MM (S) X 1.5MM (T) STAINLESS STEEL 304-304L PERFORATED SHEET	available in-store
Please enter your dimensions and quantity
